Spyder Basket Weeder

Número de Parte del Fabricante:

Tilmor Part Number:

par Tilmor Ox Logo - Gray

À Partir de $1,943.92

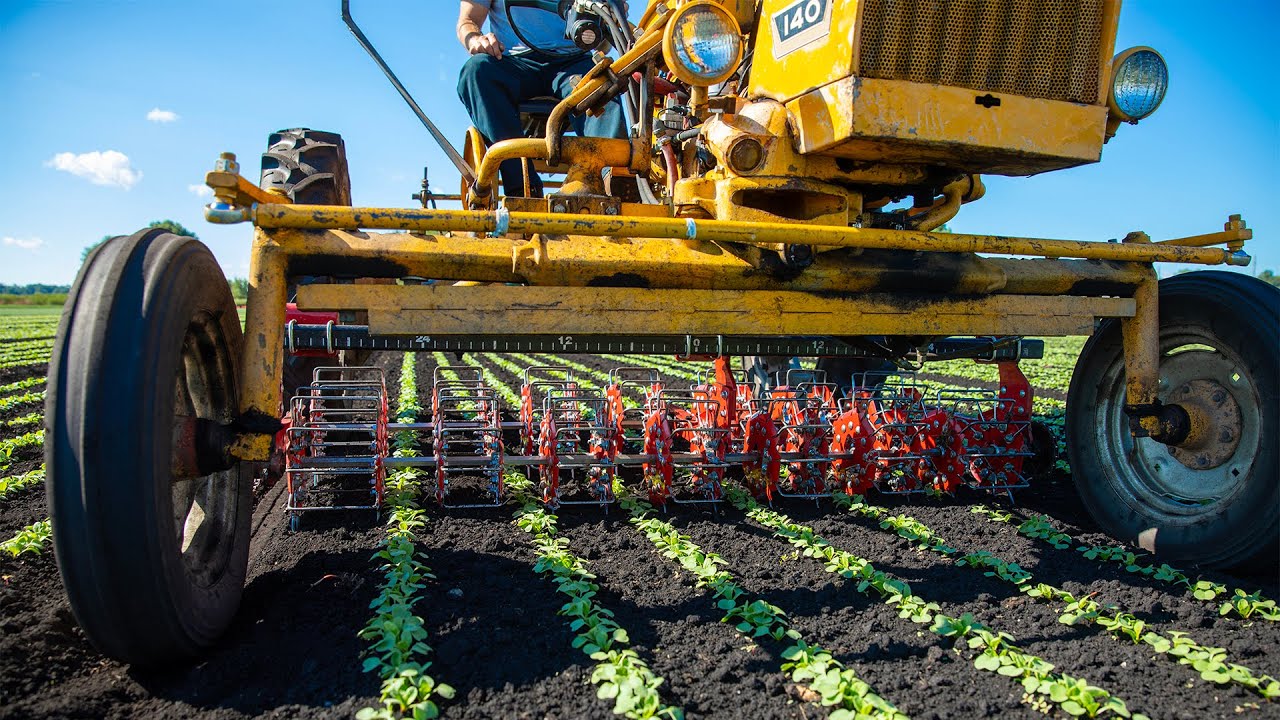

Not able to use the basket weeder because your soil is too hard or rocky? Spyder baskets can replace standard basket wires on the front axle of a basket weeder for better penetration and strength in soils that tend to crust or have more rocks. Use on a basket weeder frame you already have or purchase a new one.

Ability:
  • Break hard crust, or clay soils
  • Disturb and kill thread stage weeds without throwing soil onto small crops
  • Add weight for more aggressive cultivation

Assembly Tips:
  • Orient the spyder teeth facing up in the front to shed organic material
  • Wear protective gloves and sleeves when handling sharp edges
  • Build set-up from the inside out on the axle
  • Alternate axle holes to evenly distribute weight
Only Need Spyder Basket Replacements?
Tilmor Basket Weeder
Shop Regular Basket Weeders

Frame Size

The 60 inch Basket Weeder frame is constructed of two side plates, one center support, two stainless steel hex shafts, and a set of sprockets and chains on each end (2). The side plates may be adjusted infinitely along the length of the hex shafts and are typically set to match the width of the seedbed.

The 80 inch Basket Weeder frame is constructed of two side plates, one center support plate, two stainless steel hex shafts, and a set of sprockets and chains on each end (2). The side plates may be adjusted infinitely along the length of the hex shafts and are typically set to match the width of the seedbed.

Chain Guard

Tilmor Basket Weeder Chain Guard

Chain cover for use on the Tilmor Basket Weeder.
Required on any basket weeder used on a walk behind tractor.

Mount

Toolbar mount for Basket Weeder

For mounting on a 2" square tool bar on Tilmor or category 1 tractors with top link.

Toolbar mount for Basket Weeder

For mounting on a 2" square tool bar on mid mount tractors. Tilt adjustment for tractors without top links.

For mounting on a 2-1/4" Diamond tool bar. Slotted holes allow tilt adjustment for tractors without top links.

Spyder Baskets - Front Axle

Produit Prix (ch.) Quantity Disponibilité
Spyder Basket 4"-6"
KIT-1073 		$140.82
En stock
Spyder Basket 7"-11"
KIT-1074 		$211.23
En stock
Spyder Basket 12"-16"
KIT-1075 		$281.64
En stock

Standard Baskets - Back Axle

Tilmor basket wires are made of ¼” zinc-plated spring steel in widths of 4, 5, 6, 7, 8, 9 and 10 inches. Configure the Basket Weeder to meet your specific needs or Contact Us for assistance:

  1. Select the basket width to match the crop row width less the desired clearance (ex.: a 13 inch crop row minus 3 inches of clearance on each side of the basket requires a 7 inch basket).
    Note: There must be a front and rear basket, so two 7 inch baskets should be added.
  2. Select the number of baskets needed to work both sides of each row (ex.: number of rows + 1 = number of baskets pairs. 3 rows requires a total of 8 baskets).

      3. Produit Prix (ch.) Quantity Disponibilité
      3 Inch Basket
      KIT-1113       		$173.00
      		En stock
      4 inch Basket
      KIT-1012       		$173.00
      		En stock
      5 inch Basket
      KIT-1005       		$175.00
      		En stock
      6 inch Basket
      KIT-1006       		$177.00
      		En stock
      7 inch Basket
      KIT-1007       		$179.00
      		En stock
      8 inch Basket
      KIT-1008       		$184.00
      		En stock
      9 inch Basket
      KIT-1009       		$187.00
      		En stock
      10 inch Basket
      KIT-1010       		$189.00
      		En stock
      11 Inch Basket
      KIT-1761       		$191.00
      		En stock
      12 inch Basket
      KIT-1011       		$191.00
      		En stock

Prix:

Commande en attente

Est. de la date d'expédition: Jan 4, 2025

Expédition en 1-2 jours ouvrables

Ce produit, ou ces configurations, n'est pas en stock actuellement.

Ce produit ou ces configurations arrive bientôt.

Appelez pour la disponibilité

Quantité
Nom 60-inch spyder basket kit 80 inch Basket Weeder Chain Cover Spyder Basket 4"-6" Spyder Basket 7"-11" Spyder Basket 12"-16" Cat. 1/Tilmor (80 inch) Universal (80 inch) Diamond Bar 80" Frame Basketweeder Mount Kit 3 Inch Basket 4 inch Basket 5 inch Basket 6 inch Basket 7 inch Basket 8 inch Basket 9 inch Basket 10 inch Basket 11 Inch Basket 12 inch Basket
Image Tilmor Basket Weeder Chain Guard 2 Spyder Basket 3 spyder baskets 4 spyder basket Toolbar mount for Basket Weeder Toolbar mount for Basket Weeder Basket Assembly for Tilmor Basket Weeder Basket Assembly for Tilmor Basket Weeder Basket Assembly for Tilmor Basket Weeder Basket Assembly for Tilmor Basket Weeder Basket Assembly for Tilmor Basket Weeder Basket Assembly for Tilmor Basket Weeder Basket Assembly for Tilmor Basket Weeder Basket Assembly for Tilmor Basket Weeder Basket Assembly for Tilmor Basket Weeder
Numéro de Pièce Tilmor KIT-1110 KIT-1004 AW-9055 KIT-1073 KIT-1074 KIT-1075 49-4056 49-4060 KIT-1069 KIT-1113 KIT-1012 KIT-1005 KIT-1006 KIT-1007 KIT-1008 KIT-1009 KIT-1010 KIT-1761 KIT-1011
GTIN 00850002085068
Numéro de la Pièce du Fabricant N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Poids 63 Kg. 68.3 Kg. 10.0000 Kg. 10.5 Kg. 10.5 Kg. 10.5 Kg. 20.5000 Kg. 20.5000 Kg. 14.55 Kg. 9.95 Kg. 9.85 Kg. 9.95 Kg. 10 Kg. 10.25 Kg. 10.5 Kg. 10.65 Kg. 10.8 Kg. 7.8 Kg. 11.1 Kg.
