Tine/Wire Weeder

Manufacturer Part Number:

Tilmor Part Number:

by Thiessen Tillage Equipment

Starting at $195.00

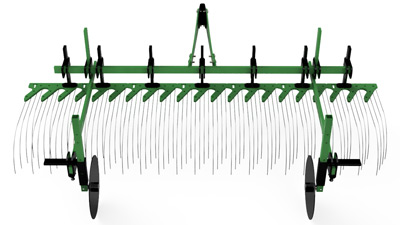

Tine weeders are a very effective blind cultivation tool that you run directly over the crop. The 1/8" spring steel tines work very shallow in the top layer of the soil to disrupt white thread stage weeds before they emerge.
Can be used like flame weeding or shallow rototilling to create a stale seedbed.

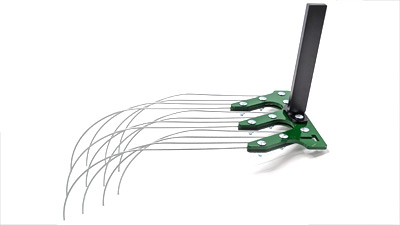

Tine sections are available in two widths, 6" and 9". You can stack them together to make any width from 6 to 63" in 3" increments. Plates are reversible to allow trash flow to the left or to the right and the non-welded design makes the tines easy to remove or replace. The shanks are 3/8" that have an insert to become 1/2" to fit Thiessen and Tilmor Flat Shank clamps.

Flex-tine mounts can be used to mount the wires onto a 2x2 inch toolbar.

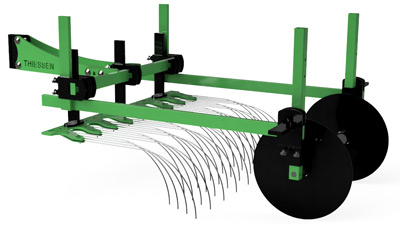

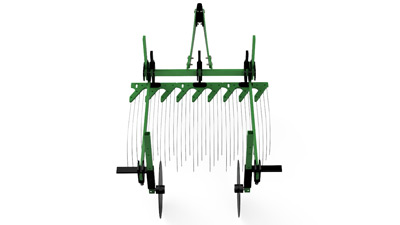

Tine Weeder - Walk Behind Package
Shop Walk-Behind Package

Section Width

Shank Option

aluminum tool standard flat shank

Use with Walk Behind Mounting Tools

New style light-weight aluminum

Mount vegetable knives or finger weeders onto walk-behind toolbars.

Dimensions: 1/2" x 1-1/4" x 13-3/4" Requires Thiessen or Planet Jr. style clamps.

Flat Shank - 1-3/16" x 3/8"

Use with 4 Wheel Tractor Mounting Toolbars

Mounting option for use with Finger Weeders and A-blades. Pair with flex-tine mounts for greater flexibility in rocky conditions.

Dimensions: 13.56" x 1.19" x .375"

Clamp Option

standard cross clamp - rectangular toolbar to flat shank

Fits standard rectangular PJ or Thiessen bars.

center mount- rectangular toolbar to flat shank

Can be used to attach tooling in the center of the front rectangular walk behind toolbar, or along the sides of the trailing arms.

1.5" tube to flat shank

For Thiessen Flat Shanks. Will not fit Tilmor red flat shanks!

Clamp Options

Includes Flex Tine Mount and Clamp for a 2x2 Inch square tube.

The Flex Tine Mount (or Flat Shank Flex Mount) mounts to a 2" square toolbar and allows for more independent movement of the arms and more flexibility in rocky conditions.

Hardware

bolt pack

Mounts Flat Shank Tool Standards to Vegetable Knives, A-blades, and Finger Weeders.

Includes:

  • 4x 3/8" x 1 1/4" carriage bolts
  • 4x 3/8" lock nuts

    1 pack contains hardware for 2x shanks

    • Price:

    Est. ship date: Apr 28, 2025

    Ships in 2-3 business days

    This product, or its configuration, is out of stock. Call for Availability.

    This product or its configuration is coming soon.

    Call for availability

    Qty
    Name 6" Tine Weeder Section 9" Tine Weeder Section Tool Standard (1/2" x 1-1/4" Flat Shank) Flat Shank Hardware Pack for Flat/Round Shanks
    Image aluminum tool standard flat shank Flat Shank - 1-3/16" x 3/8" bolt pack
    Tilmor Part Number PB-1953 PB-1937 PA-9006 AW-1140 49-4072
    Manufacturer Part Number TW-S152 TW-S228 WB-AFS350 N/A N/A
    Weight 4.6000 lbs. 5.8000 lbs. 0.8000 lbs. 1.6500 lbs. 0.4400 lbs.
